Belva BXA15001 + Belva BAK82 8 Gauge Amp Kit 1500W Max Monoblock Class-AB Car Amplifier Package

The new Belva BXA15001 is categorized as a Class A/B amplifier. This class of amplifiers combine the high efficiency of a class A amplifier and lower distortion found in class B amplifiers. The class AB amplifier acts more similarly to a class A amplifier by biasing both transistors so they become active when the signal is close to zero. As the signal excursion increases into a larger waveform, only one transistor remains active, a primary function found in class B amplifiers. These features combined with the MOSFET transistor allow the Belva BXA15001 to be one of the most efficient amplifiers on the market.

• Product Highlights
  • 750 watts x 1 channel @ 4 ohms
  • 1500 watts x 1 channel @ 2 ohms
  • Total Peak Power: 1500 watts
  • Class A/B 2 ohms Stable Monoblock
  • Includes Amplifier Wiring Kit
• Belva BXA15001 1500W Peak BX-Series Class-AB Monoblock Car Amplifier with Bass Remote Product Details:
  • BX Series Class A/B 2 ohms Stable Monoblock Amplifier
  • Power Rating:
  • 4 ohms: 750 watts x 1 channel
  • 2 ohms: 1500 watts x 1 channel
  • Total Peak power output: 1500 watts
  • Pulse Width Modulated MOSFET power supply
  • LED Power/Protect Light

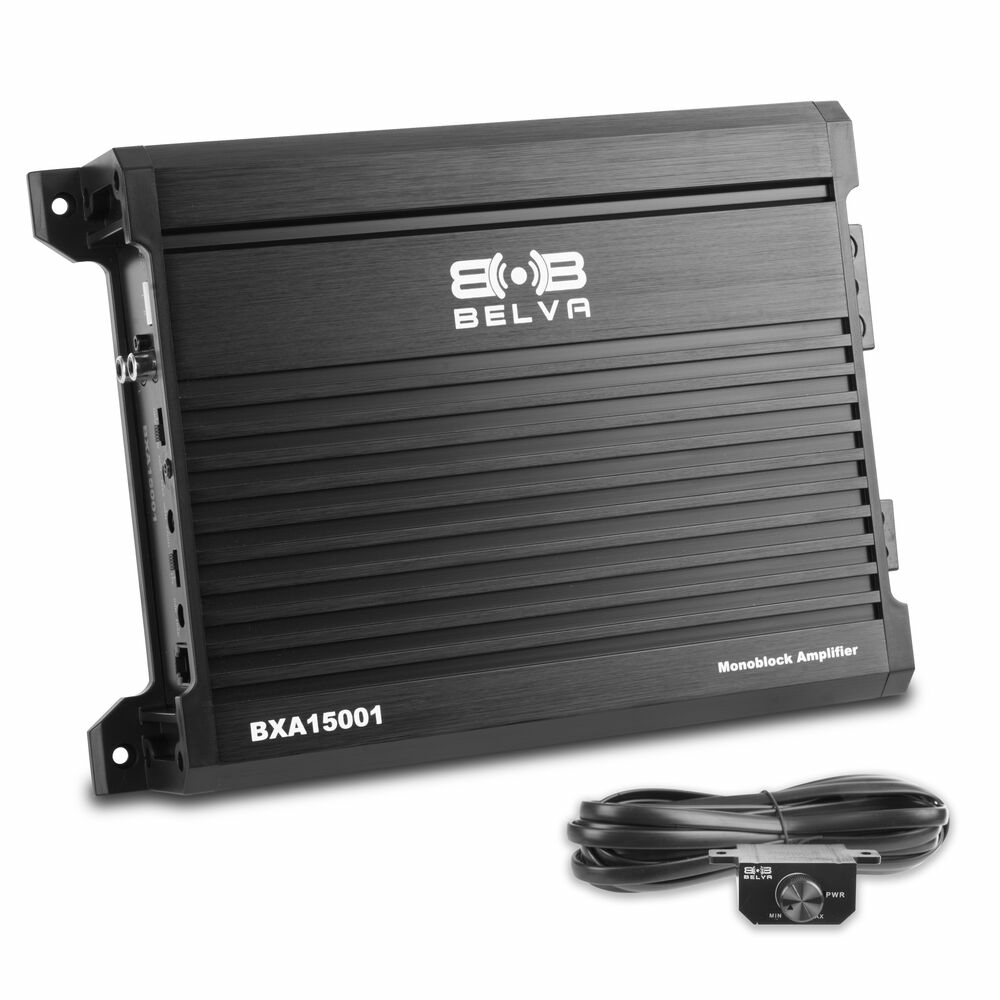

  • Wired remote bass level control included
  • Soft start turn-on
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity:
  • Low level: 200mV - 8 volts
  • Frequency Response: 10 - 30,000 Hz
  • Total Harmonic Distortion (THD): 0.05%
  • Signal to Noise Ratio: 96 dB
  • Variable low-pass filter: 50 - 250 Hz
  • Variable Bass Boost: 0 - 18 dB
  • Fuse Rating: 30A
  • 8 AWG gauge power and ground wiring is recommended for installation.
  • Dimensions: 7.47" W x 7.87" L x 2.00" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
• Belva BAK42BL 4 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1200 Watts - BLUE Product Details:
  • Complete 4 Gauge 2-Channel Amplifier Installation Kit
  • Designed for car audio systems up to 1200 watts RMS
  • Premium Powerflex power and ground wire provides optimal power transfer
  • Belva CCA wire is made from 30% copper while the competition uses only 10%

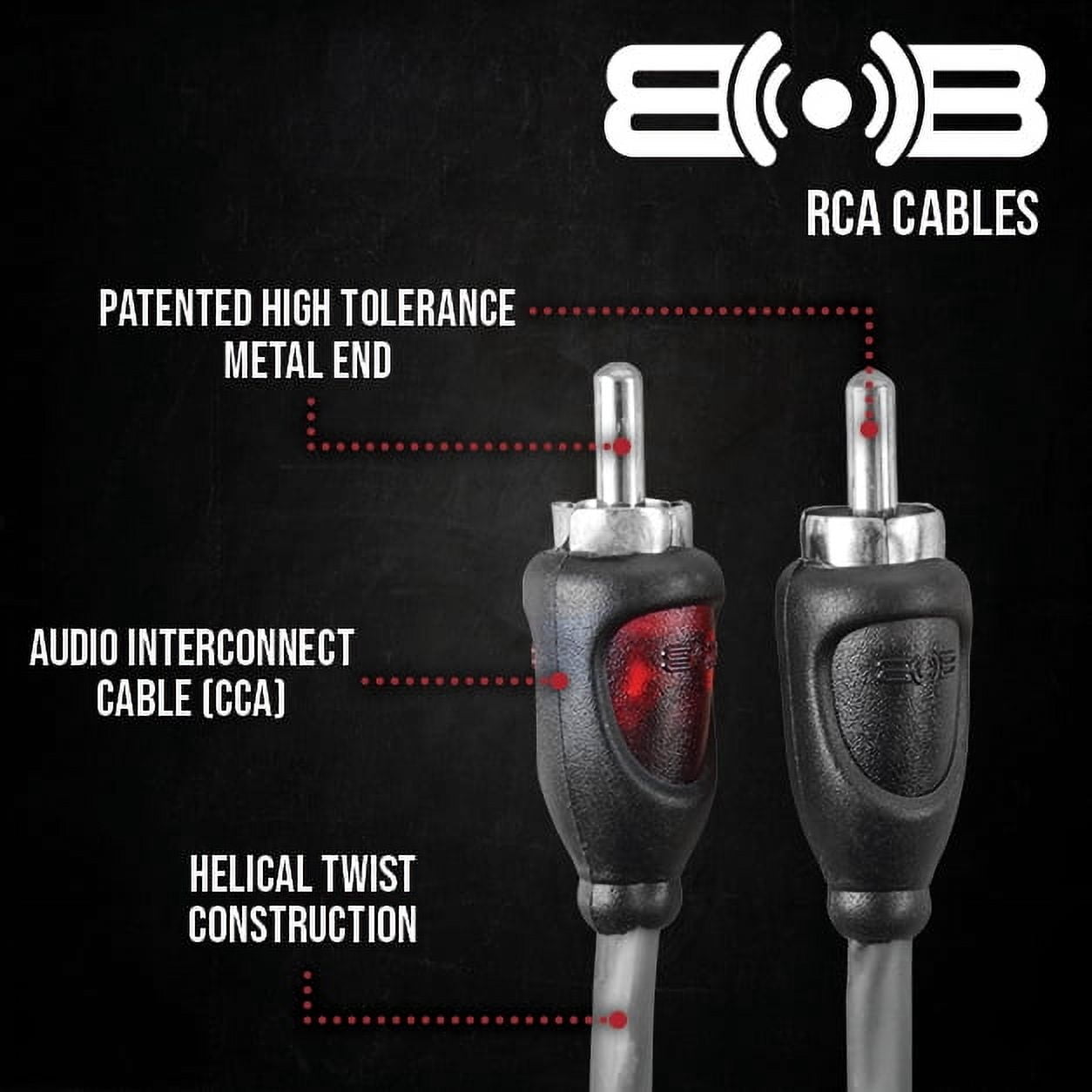

  • Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
  • MINI-ANL Fuse holder with a 80 amp fuse offers ideal protection for high powered systems
  • Complies to American Wire Gauge standards
  • Also available in Black and Red
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

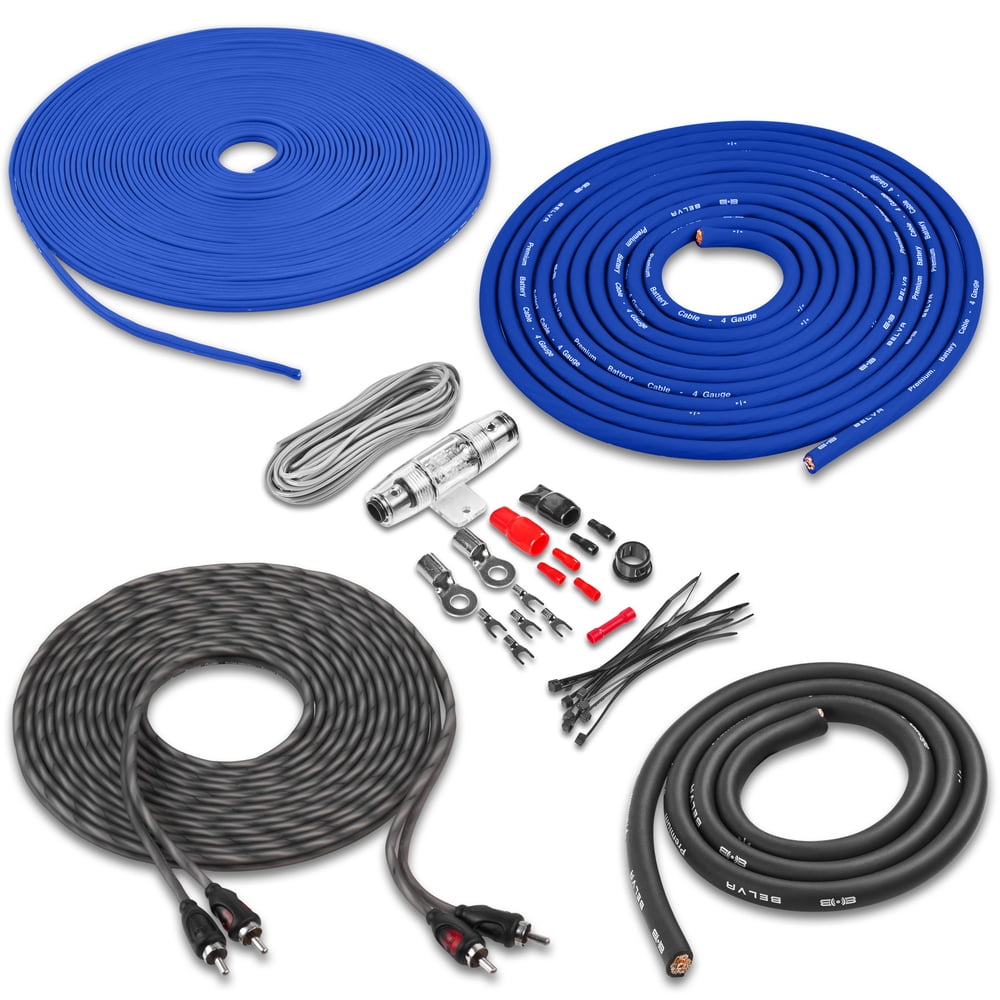

  Kit includes:

  1. 17 ft. (5.2 meters) Blue 4 gauge power wire
  2. 3 ft. (.91 meters) Black 4 gauge ground wire
  3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire
  4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable
  5. 20 ft. (6.1 meters) 16 Gauge Speaker cable
  6. One MINI-ANL Fuse Holder with a 80 amp fuse
  7. One Black rubber firewall grommet
  8. One 4 Gauge Blue chrome plated ring terminals
  9. One 4 Gauge Black chrome plated ring terminal
  10. Three 18 Gauge Blue Spade terminal
  11. Two 18 Gauge Black Spade terminal
  12. One 18 Gauge Red butt connector
  13. Ten 4" Black zip ties
• Amplifier Specifications
  • Amplifier Class - A/B
  • Number of Channels - 1 - Mono
  • Total Peak Power Output - 1500 watts
  • Maximum Input Gauge Size - 4 AWG
  • Minimum Impedance Unbridged - 2 ohms
  • THD at Rated RMS Power - <=0.05%
  • Built-in Crossover - Low-Pass (LP)
  • Low-Pass Crossover Frequency - 50 - 250 Hz
  • Signal-to-Noise Ratio - =>96 dB
  • Remote bass/level controller - Yes
  • Fuse Rating - 30A x 1
  • Total Fuse Rating - 30
  • CEA-2031 Compliant - Yes
  • Amp Bluetooth Connectivity - No
• Warranty and Return Policy
  • Parts Warranty Duration - 1 year
  • Labor Warranty Duration - 1 year
  • Warranty Provider - Manufacturer
